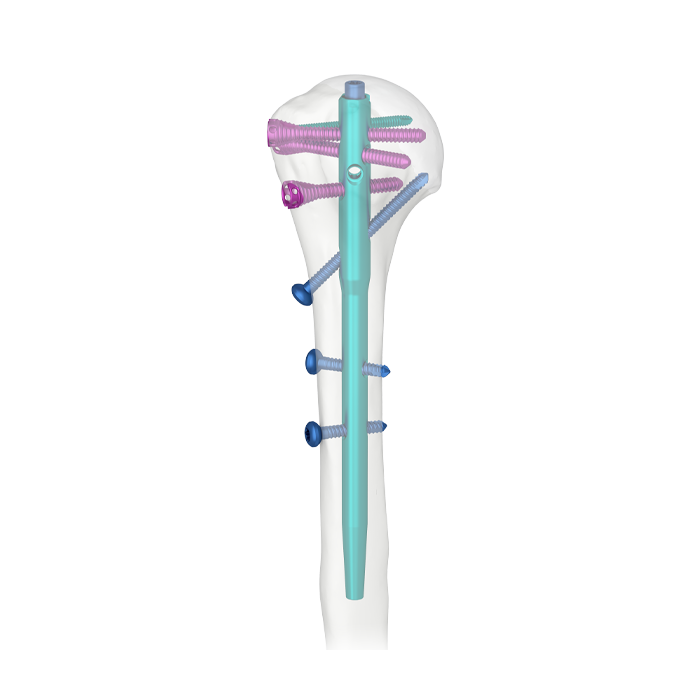

AHN Advanced Humeral Nail

Straight design nail enable the central insertion. Advanced Humeral Nail could help to solve series of proximal humeral fractures.

产品详情

Straight design nail enable the central insertion. Advanced Humeral Nail could help to solve series of proximal humeral fractures.


特点:

  • Straight nail design for central insertion point.
  • Improved anchorage in strong subchondral bone.
  • Potentially avoiding insertion through fracture site in typical 3-part fractures.
  • Preservation of hypovascular supraspinatus footprint.
  • Proximal locking holes for angular stability and to reduce instances of screw back-out.
  • Ascending screw option providing support for the calcar.
  • Distal Multiplanar locking provide angular stability.
  • The proximal of nail with groove for screw in screw fixation.
  • Provide ascending screw and compression screw for long nail.

Indications

Short (160/180mm)

  • 2-part surgical neck fractures
  • 3-part fractures
  • 4-part fractures

Long (195-285/15mm)

  • Humerus shaft fracture
  • Fractures of proximal humerus extended to shaft
  • Fractures of proximal humerus combined with shaft

螺钉:

  • 4.5mm MultiLoc Screw
  • 3.5mm锁定螺钉
  • 4.0mm 锁定螺钉
  • End Cap for Advanced Humeral Nail


Instrument Set:

  • Advanced Humeral Nail Instrument Set
